Variable Capture

Edit the material here!

For classes that are defined within a method, variable capturing will occur. Variable capture is when the local variables within the local function in which the nested class is defined in, is being captured inside of the instance of the inner class in the heap. Looking at the code from Recitation 6 Q2b,

class B {
  void f() {
    int x = 0;
    class A {
      int y = 0;
      A() {
        y = x + 1;
      }
    }
    A a = new A();
  }
}

In this example, the variable int x is defined in the enclosing function in which the class A is defined. This means that the variable x is a local variable, and will be captured inside every instance of A in the heap, even if not explicitly declared in A. This means that methods in class A will be able to make use of the variable x.

Variable x is captured in the instance of A inside the heap!

Qualified this

In order for us to refer to the enclosing class, we use a qualified this, syntaxed as ClassName.this. In the example below, a qualified this is used to refer to a field in the enclosing class.

class B {
  int x = 1;
  void f() {
    int y = 2;
    class A {
      void g() {
        B.this.x = y;
      }
    }
    A a = new A();
    a.g();
  }
}

B.this.x is the qualified this that refers to the variable x in the enclosing class, B. In contrast to the previous example (Recitation 6 Q2b) at the top of this page, the variable x is referenced through the qualified this and is not captured in the instance of A. We cannot simply use this.x because it will refer to the instance of A.

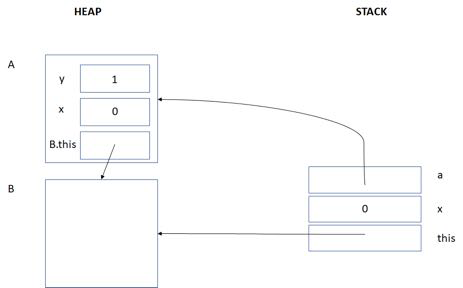

B.this is stored in the instance of A inside the heap!

Effectively final

From java 8, local variables that are captured must be final or effectively final. In the first example above (Recitation 6 Q2b), this means that x must be final or effectively final. Since variable x is captured by A, trying to change the value of x will result in a compilation error.

class B {
  void f() {
    int x = 0;
    class A {
      int y = 0;
      A() {
        y = x + 1;
      }
    }
    x = 1; //results in an error
    A a = new A();
  }
}

Somewhere that we often see this phenomenon is in lamba expressions. Like inner classes, lambda expressions also captures local variables, which is why when we use a lambda expression inside a method, we can reference the variables that are defined in the enclosing method within our lambda expression. Since local variables are captured by lambda expressions, this means that those captured variables must also be final or effectively final. For example,

class Test {
  int supplierAdd(int x, int y) {
    Supplier<Integer> s = () -> x + y; //variables x and y are captured by lambda
    x++; //this results in a compilation error
    return s.get()
  }
}
